Preparatory Steps of Genetic Programming
Genetic programming starts from a high-level statement of the requirements of a problem and attempts to produce a computer program that solves the problem.
The human user communicates the high-level statement of the problem to the genetic programming system by performing certain well-defined preparatory steps.
The five major preparatory steps for the basic version of genetic programming require the human user to specify
(1) the set of terminals (e.g., the independent variables of the problem, zero-argument functions, and random constants) for each branch of the to-be-evolved program,
(2) the set of primitive functions for each branch of the to-be-evolved program,
(3) the fitness measure (for explicitly or implicitly measuring the fitness of individuals in the population),
(4) certain parameters for controlling the run, and
(5) the termination criterion and method for designating the result of the run.

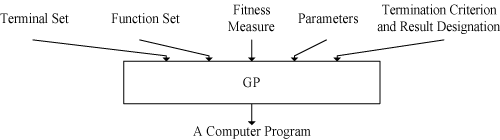

The figure below shows the five major preparatory steps for the basic version of genetic programming. The preparatory steps (shown at the top of the figure) are the human-supplied input to the genetic programming system. The computer program (shown at the bottom) is the output of the genetic programming system.
The first two preparatory steps specify the ingredients that are available to create the computer programs. A run of genetic programming is a competitive search among a diverse population of programs composed of the available functions and terminals.
Function Set and Terminal Set
The identification of the function set and terminal set for a particular problem (or category of problems) is usually a straightforward process. For some problems, the function set may consist of merely the arithmetic functions of addition, subtraction, multiplication, and division as well as a conditional branching operator. The terminal set may consist of the program’s external inputs (independent variables) and numerical constants. This function set and terminal set is useful for a wide variety of problems (and corresponds to the basic operations found in virtually every general-purpose digital computer).
For many other problems, the ingredients include specialized functions and terminals. For example, if the goal is to get genetic programming to automatically program a robot to mop the entire floor of an obstacle-laden room, the human user must tell genetic programming what the robot is capable of doing. For example, the robot may be capable of executing functions such as moving, turning, and swishing the mop.
If the goal is the automatic creation of a controller, the function set may consist of signal-processing functions that operates on time-domain signals, including integrators, differentiators, leads, lags, gains, adders, subtractors, and the like. The terminal set may consist of signals such as the reference signal and plant output. Once the human user has identified the primitive ingredients for a problem of controller synthesis, the same function set and terminal set can be used to automatically synthesize a wide variety of different controllers.
If a complex structure, such an antenna, is to be designed, it may be desirable to use functions that cause a turtle to draw the complex structure.
If the goal is the automatic synthesis of an analog electrical circuit, the function set may enable genetic programming to construct circuits from components such as transistors, capacitors, and resistors. This construction (developmental) process typically starts with a very simple embryonic structure, such as a single modifiable wire. If, additionally, such a function set is geographically aware, a circuit’s placement and routing can be synthesized at the same as its topology and sizing. Click here for information about developmental genetic programming. Once the human user has identified the primitive ingredients for a problem of circuit synthesis, the same function set and terminal set can be used to automatically synthesize an amplifier, computational circuit, active filter, voltage reference circuit, or any other circuit composed of these ingredients.
Fitness Measure
The third preparatory step concerns the fitness measure for the problem. The fitness measure specifies what needs to be done. The fitness measure is the primary mechanism for communicating the high-level statement of the problem’s requirements to the genetic programming system. For example, if the goal is to get genetic programming to automatically synthesize an amplifier, the fitness function is the mechanism for telling genetic programming to synthesize a circuit that amplifies an incoming signal (as opposed to, say, a circuit that suppresses the low frequencies of an incoming signal or a circuit that computes the square root of the incoming signal). The first two preparatory steps define the search space whereas the fitness measure implicitly specifies the search’s desired goal.
Control Parameters
The fourth and fifth preparatory steps are administrative. The fourth preparatory step entails specifying the control parameters for the run. The most important control parameter is the population size. In practice, the user may choose a population size that will produce a reasonably large number of generations in the amount of computer time we are willing to devote to a problem (as opposed to, say, analytically choosing the population size by somehow analyzing a problem’s fitness landscape). Other control parameters include the probabilities of performing the genetic operations, the maximum size for programs, and other details of the run.
Termination
The fifth preparatory step consists of specifying the termination criterion and the method of designating the result of the run. The termination criterion may include a maximum number of generations to be run as well as a problem-specific success predicate. In practice, one may manually monitor and manually terminate the run when the values of fitness for numerous successive best-of-generation individuals appear to have reached a plateau. The single best-so-far individual is then harvested and designated as the result of the run.
Running Genetic Programming
After the human user has performed the preparatory steps for a problem, the run of genetic programming can be launched. Once the run is launched, a series of well-defined, problem-independent executional steps (that is, the flowchart of genetic programming) is executed.
Click here for an example of an illustrative run of genetic programming for a problem of symbolic regression of a quadratic polynomial.
