Creation of 3 Non-PID Controllers that Outperform a PID Controller that uses the Ziegler-Nichols or Åström-Hägglund Tuning Rules
(A Human-Competitive Result Produced by Genetic Programming)
The Result

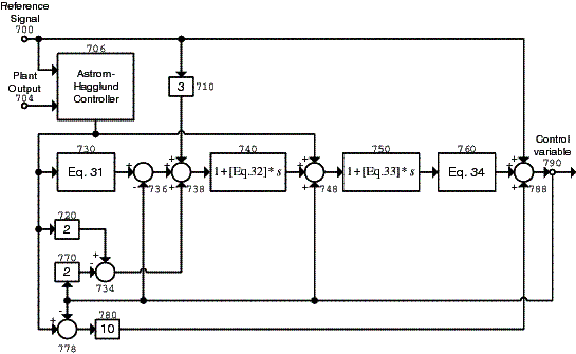

Genetic programming evolved 3 non-PID controllers that outperform a PID controller that uses the Ziegler-Nichols or Åström-Hägglund tuning rules as described in 13 of Genetic Programming IV: Routine Human-Competitive Machine Intelligence (Koza, Keane, Streeter, Mydlowec, Yu, and Lanza 2003). One of these 3 controllers is shown below.
Genetic programming created the above topology as well as equations 31, 32, 33, and 34:
[31]
[34]
[32]
[33]
Basis for Claim of Human-Competitiveness
The PID controller was patented in 1939 by Albert Callender and Allan Stevenson of Imperial Chemical Limited of Northwich, England (Callender and Stevenson 1939). The PID controller was an enormous improvement over previous manual and automatic methods for control.
In 1942, Ziegler and Nichols published a paper entitled “Optimum Settings for Automatic Controllers”
in which they developed a set of mathematical rules for automatically selecting
the parameter values associated with the proportional, integrative, and
derivative blocks of a PID controller (Ziegler and Nichols 1942). The
Ziegler-Nichols rules have been in
widespread use for tuning PID controllers since World War II.
The quality of PID tuning rules is of considerable practical importance because a small percentage improvement in the operation of a plant can translate into large economic savings or other (e.g., environmental) benefits.
Åström and Hägglund improved on the 1942 Ziegler and Nichols in their important 1995 book PID Controllers: Theory, Design, and Tuning. In that book for four families of plants “that are representative for the dynamics of typical industrial processes.”
Genetic programming, in turn, has created both the topology and tuning for 3 non-PID controllers. The 3 genetically evolved improved non-PID controllers (called the Keane-Koza-Streeter (KKS) controllers) outperform a PID controller tuned using the rules developed by Åström and Hägglund in their 1995 book. As previously mentioned, the tuning rules for the Åström and Hägglund PID controller, in turn, outperform the 1942 Ziegler-Nichols tuning rules on the 16 industrially representative plants used by Åström and Hägglund.
Referring to the eight criteria in table 1.2 of Genetic Programming IV: Routine Human-Competitive Machine Intelligence (Koza, Keane, Streeter, Mydlowec, Yu, and Lanza 2003) for establishing that an automatically created result is competitive with a human-produced result, the creation by genetic programming of the 3 improved non-PID controllers satisfies the following five of the eight criteria:
(B) The result is equal to or better than a result that was accepted as a new scientific result at the time when it was published in a peer-reviewed scientific journal.
(D) The result is publishable in its own right as a new scientific result¾independent of the fact that the result was mechanically created.
(E) The result is equal to or better than the most recent human-created solution to a long-standing problem for which there has been a succession of increasingly better human-created solutions.
(F) The result is equal to or better than a result that was considered an achievement in its field at the time it was first discovered.
(G) The result solves a problem of indisputable difficulty in its field.
A patent application (Keane, Koza,
and Streeter 2002a) was filed on July 12, 2002, for the 3 improved
non-PID controllers. The applicants believe that the 3
improved non-PID controllers are patentable because
they satisfy the statutory requirements of being “new,” “useful,”
“improved,” and “unobvious” to someone “having ordinary skill in the art.”
U.S. law suggests that inventions created by automated means are patentable by saying:
“Patentability shall not be negatived by the manner in which the invention was made.” (35 United States Code 103a)
If (as expected) a patent is granted, it will (we believe) be the first patent granted for an invention created by genetic programming.
We believe that the creation by genetic programming of 3 improved non-PID controllers satisfies the following additional criterion from table 1.2:
(A) The result was patented as an invention in the past, is an improvement over a patented invention, or would qualify today as a patentable new invention.
References
Åström, Karl J. and Hägglund, Tore. 1995. PID Controllers: Theory, Design, and Tuning. Second Edition. Research Triangle Park, NC: Instrument Society of America.
Callender, Albert and Stevenson, Allan Brown. 1939. Automatic Control of Variable Physical Characteristics. U.S. patent 2,175,985. Filed February 17, 1936 in the United States. Filed February 13, 1935 in Great Britain. Issued October 10, 1939 in the United States.
Keane, Martin A., Koza, John R., and Streeter, Matthew J. 2002a. Improved General-Purpose Controllers. U.S. patent application filed July 12, 2002.
Koza, John R., Keane, Martin A., Streeter, Matthew J., Mydlowec, William, Yu, Jessen, and Lanza, Guido. 2003. Genetic Programming IV: Routine Human-Competitive Machine Intelligence. Kluwer Academic Publishers.
Ziegler, J. G. and
Nichols, N. B. 1942. Optimum settings for automatic controllers. Transactions of ASME. (64)759–768.
